I am currently working on Feature 3589 "Allow user to save/download Explain plan as JPEG/SVG format." I have added one download button to the toolbar in "Explain" tab, when clicked it will download the explain plan as a SVG file.
To add this feature I'll have to modify the logic, so instead of providing relative path of each plan (svg image), I have embedded the binary data which is required to download the Explain plan.

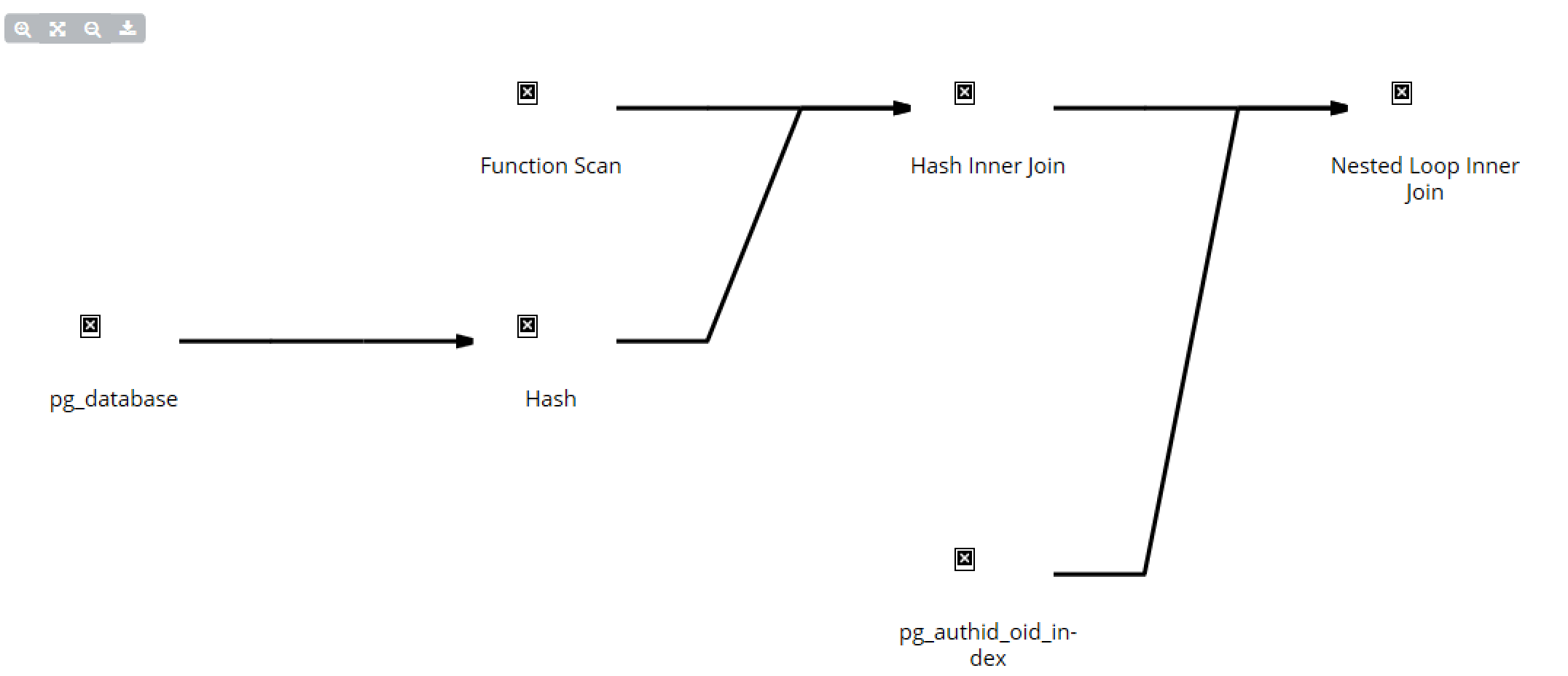

Internet Explorer (Images are not rendered, shown X icon.). Please refer attached image.
Attached is the working patch for the above except Internet Explorer. I have tried a lot to figure out the solution, but unable to fix the issue. Need help/suggestions how to fix the issue on Internet Explorer.
