Hi Team,
I've implemented the query plan analyzer having similar functionality as
explain.depsez.com.
It now creates three tabs under the 'Explain' panel.
Graphical
-> Graphical Explain Plan

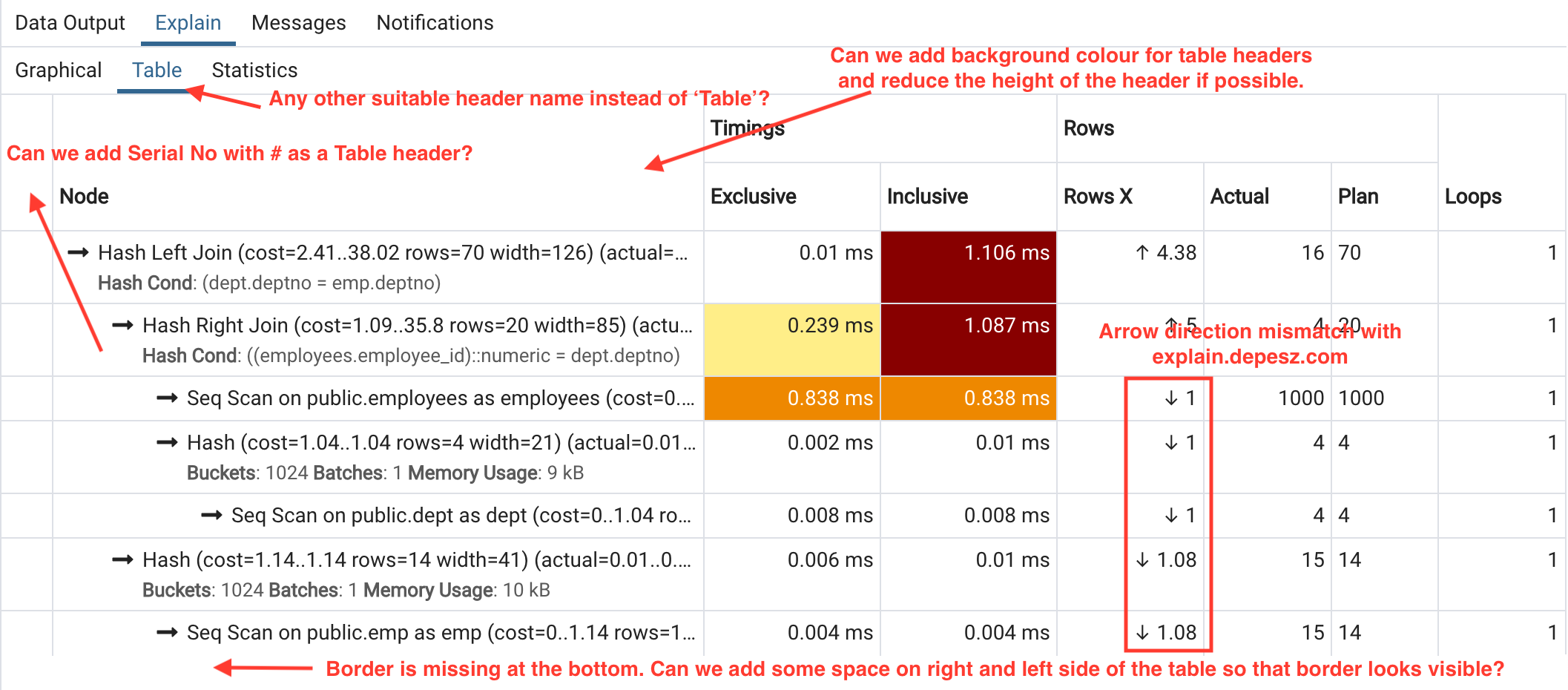

Table (similar to
explain.depsez.com)
-> Table to analyse the plan in details.
-> Each row represents the statistics per Explain Node
-> It may contains columns like node information, exclusive timing (time spent for this explain node excluding the child nodes), inclusive timing, actual rows, plan rows, rowsx (misestimation between planned vs actual rows), loop
-> Background color of exclusive, inclusive, rows changes based on their values.
i.e.
if Percentage of exclusive, and inclusive timings of total query time is
> 90 - Red Color
> 50 - Orange (Between Red & Yellow Color)
> 10 - Yellow color
if planner misestimation for the rows is
> 1000 times - Red Color
> 100 times - Orange (Between Red & Yellow Color)
> 10 times - Yellow Color
Also - if actual rows >= plan rows then it shows up arrow, , else it shows down arrow.

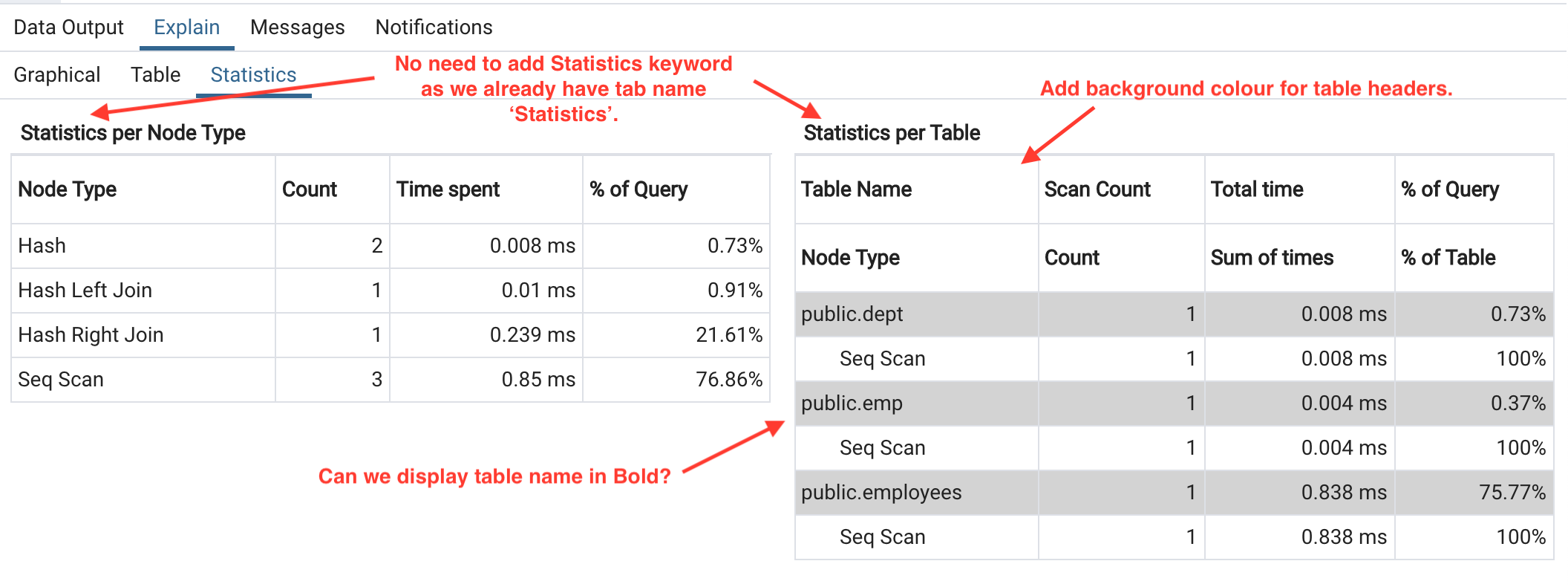

Statistics
-> It contains a HTML table for the statistics per Node Type, and a HTML table for the statistics per table.
