More stable query plans via more predictable column statistics

The code in compute_scalar_stats() goes in such a way that it requires a candidate MCV to count over "samplerows / max(ndistinct / 1.25, num_bins)", but samplerows doesn't account for NULLs, this way we are rejecting would-be MCVs on a wrong basis.


Another, one of the next-to-worst cases (the type of this column is actually TEXT, hence the sort order):

columnname        | xxx.yy2.zz2 (inherited)
n_distinct        | 30
null_frac         | 0
num_mcv           | 2
most_common_vals  | {101,100}
most_common_freqs | {0.806367,0.1773}
mcv_frac          | 0.983667
nonnull_mcv_frac  | 0.983667
distinct_hist     | 6
num_hist          | 28
hist_ratio        | 0.214285714285714
histogram_bounds  | {202,202,202,202,202,202,202,202,202, *3001*, 302,302,302,302,302,302,302,302,302,302,302, *3031,3185*, 502,502,502,502,502}

(emphasis added around values that are unique)

This time there were no NULLs, but still a lot of duplicates got included in the histogram.  This happens because there's relatively small number of distinct values, so the candidate MCVs are limited by "samplerows / num_bins".  To really avoid duplicates in the histogram, what we want here is "samplerows / (num_hist - 1)", but this brings a "chicken and egg" problem: we don't know the value of num_hist before we determine the number of MCVs we want to keep.


Solution proposal
=================

The solution I've come up with (and that was also suggested by Jeff Janes in that performance thread mentioned above, as I have now found out) is to move the calculation of the target number of histogram bins inside the loop that evaluates candidate MCVs.  At the same time we should account for NULLs more accurately and subtract the MCV counts that we do include in the list, from the count of samples left for the histogram on every loop iteration.  A patch implementing this approach is attached.


When I have re-analyzed the worst-case columns with the patch applied, I've got the following picture (some boring stuff in the histogram snipped):

columnname        | xxx.yy1.zz1
n_distinct        | 21
null_frac         | 0.988333
num_mcv           | 5
most_common_vals  | {DDD,"Rrrrr","Ddddddd","Kkkkkk","Rrrrrrrrrrrrrr"}
most_common_freqs | {0.0108333,0.0001,6.66667e-05,6.66667e-05,6.66667e-05}
mcv_frac          | 0.0111333
nonnull_mcv_frac  | 0.954287
distinct_hist     | 16
num_hist          | 16
hist_ratio        | 1
histogram_bounds  | {aaa,bbb,cccccccc,dddd,"dddd ddddd",Eee,...,zzz}

Now the "DDD" value was treated like an MCV as it should be.  This arguably constitutes a bug fix, the rest are probably just improvements.

Here we also see some additional MCVs, which are much less common.  Maybe we should also cut them off at some low frequency, but it seems hard to draw a line.  I can see that array_typanalyze.c uses a different approach with frequency based cut-off, for example.


The mentioned next-to-worst case becomes:

columnname        | xxx.yy2.zz2 (inherited)
n_distinct        | 32
null_frac         | 0
num_mcv           | 15
most_common_vals  | {101,100,302,202,502,3001,3059,3029,3031,3140,3041,3095,3100,3102,3192}
most_common_freqs | {0.803933,0.179,0.00656667,0.00526667,0.00356667,0.000333333,0.000133333,0.0001,0.0001,0.0001,6.66667e-05,6.66667e-05,6.66667e-05,6.66667e-05,6.66667e-05}
mcv_frac          | 0.999433
nonnull_mcv_frac  | 0.999433
distinct_hist     | 17
num_hist          | 17
hist_ratio        | 1
histogram_bounds  | {3007,3011,3027,3056,3067,3073,3084,3087,3088,3106,3107,3118,3134,3163,3204,3225,3247}

Now we don't have any duplicates in the histogram at all, and we still have a lot of diversity, i.e. the histogram didn't collapse.


The "meta-statistics" also improves if we re-analyze the whole database with the patch:

(WHERE histogram_bounds IS NOT NULL)
-[ RECORD 1 ]----
count  | 18314
min    | 0.448276
avg    | 0.988884
max    | 1
stddev | 0.052899

(WHERE distinct_hist < num_hist)
-[ RECORD 1 ]----
count  | 1095
min    | 0.448276
avg    | 0.81408
max    | 0.990099
stddev | 0.119637

We could see that both worst case and average have improved.  We did lose some histograms because they have collapsed, but it only constitutes about 3.5% of total count.

We could also see that 100% of instances where we still have duplicates in the histogram are due to the MCV lists being fully occupied:

WITH ...
SELECT count(1), num_mcv = stats_target
  FROM stats2
 WHERE distinct_hist < num_hist
 GROUP BY 2;

-[ RECORD 1 ]--
count    | 1095
?column? | t

There's not much left to do but increase statistics target for these columns (or globally).


Increasing stats target
========================

It can be further demonstrated, that with the current code, there are certain data distributions where increasing statistics target doesn't help, in fact for a while it makes things only worse.

I've taken one of the tables where we hit the stats_target limit on the MCV and tried to increase the target gradually, re-analyzing and taking notes of MCV/histogram distribution.  The table has around 1.7M rows, but only 950 distinct values in one of the columns.

The results of analyzing the table with different statistics target is as follows:

 stats_target | num_mcv | mcv_frac | num_hist | hist_ratio
--------------+---------+----------+----------+------------
          100 |      97 | 0.844133 |      101 |   0.841584
          200 |     106 | 0.872267 |      201 |   0.771144
          300 |     108 | 0.881244 |      301 |   0.528239
          400 |     111 | 0.885992 |      376 |   0.422872
          500 |     112 | 0.889973 |      411 |   0.396594
         1000 |     130 | 0.914046 |      550 |   0.265455
         1500 |     167 | 0.938638 |      616 |   0.191558
         1625 |     230 | 0.979393 |      570 |   0.161404
         1750 |     256 | 0.994913 |      564 |   0.416667
         2000 |     260 | 0.996998 |      601 |    0.63228

One can see that num_mcv grows very slowly, while hist_ratio drops significantly and starts growing back only after around stats_target = 1700 in this case.  And in order to hit hist_ratio of 100% one would have to analyze the whole table as a "sample", which implies statistics target of around 6000.

If I would do the same test with the patched version, the picture would be dramatically different:

 stats_target | num_mcv | mcv_frac | num_hist | hist_ratio
--------------+---------+----------+----------+------------
          100 |     100 | 0.849367 |      101 |   0.881188
          200 |     200 | 0.964367 |      187 |   0.390374
          300 |     294 | 0.998445 |      140 |          1
          400 |     307 | 0.998334 |      200 |          1
          500 |     329 | 0.998594 |      211 |          1

The MCV list tends to take all available space in this case and hist_ratio hits 100% (after a short drop) and it only requires a small increase in stats_target, compared to the unpatched version.  Even if only for this particular distribution pattern, that constitutes an improvement, I believe.


By increasing default_statistics_target on a patched version, I could verify that the number of instances with duplicates in the histogram due to the full MCV lists, which was 1095 at target 100 (see the latest query in prev. section) can be further reduced to down to ~650 at target 500, then ~300 at target 1000.  Apparently there always would be distributions which cannot be covered by increasing stats target, but given that histogram fraction also decreases rather dramatically, this should not bother us a lot.


Expected effects on plan stability
==================================

We didn't have a chance to test this change in production, but according to a research by my colleague Stefan Litsche, which is summarized in his blog post[1] (and as it was also presented on PGConf.de last week), with the existing code increasing stats target doesn't always help immediately: in fact for certain distributions it leads to less accurate statistics at first.

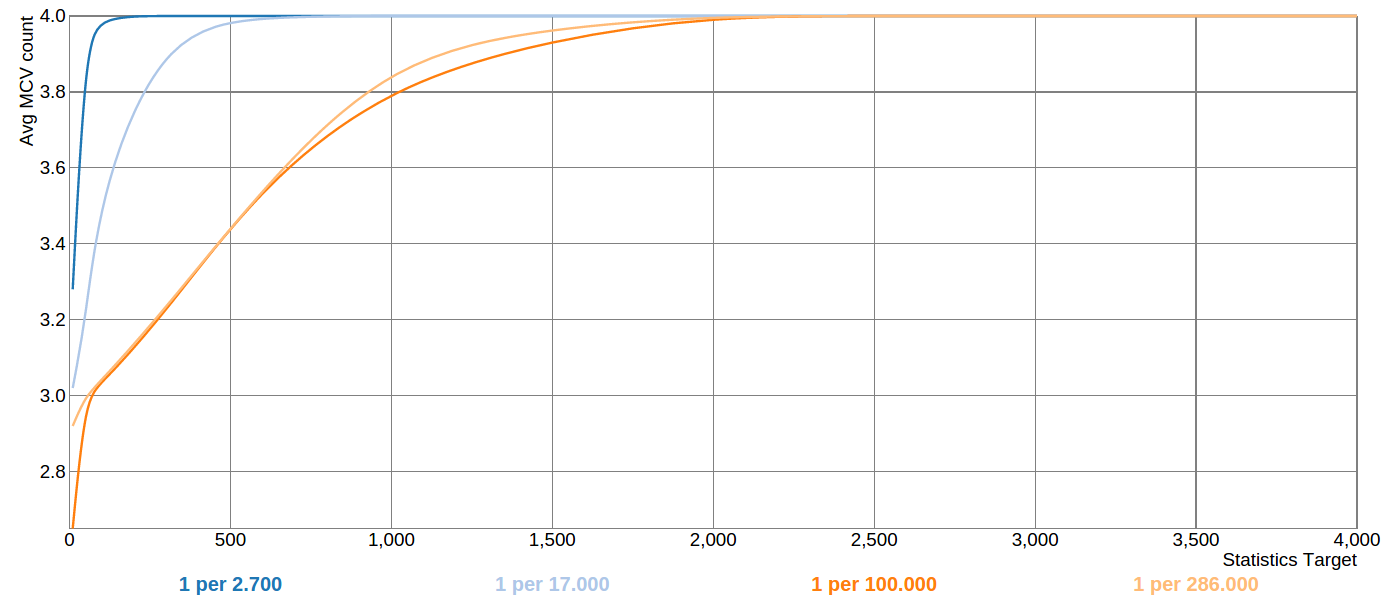

If you look at the last graph in that blog, you can see that for very rare values one needs to increase statistics target really high in order to get the rare value covered by statistics reliably.  Attached is the same graph, produced from the patched version of the server: now the average number of MCVs for the discussed test distribution shows monotonic increase when increasing statistics target.  Also, for this particular case the statistics target can be increased by a much smaller factor in order to get a good sample coverage.


A few word about the patch
==========================

+                     /* estimate # of occurrences in sample of a typical value */
+                     avgcount = (double) sample_cnt / (double) ndistinct;

Here, ndistinct is the int-type variable, as opposed to the original code where it is re-declared at an inner scope with type double and hides the one from the outer scope.  Both sample_cnt and ndistinct decrease with every iteration of the loop, and this average calculation is actually accurate: it's not an estimate.

+
+                     /* set minimum threshold count to store a value */
+                     mincount = 1.25 * avgcount;

I'm not fond of arbitrary magic coefficients, so I would drop this altogether, but here it goes to make the difference less striking compared to the original code.

I've removed the "mincount < 2" check that was present in the original code, because track[i].count is always >= 2, so it doesn't make a difference if we bump it up to 2 here.

+
+                     /* don't let threshold exceed 1/K, however */
+                     maxmincount = (sample_cnt - 1) / (double) (num_hist - 1);

Finally, here we cannot set the threshold any higher.  As an illustration, consider the following sample (assuming statistics target is > 1):

[A A A A A  B B B B B  C]

sample_cnt = 11
ndistinct = 3
num_hist = 3

Then maxmincount calculates to (11 - 1) / (3 - 1) = 10 / 2.0 = 5.0.

If we would require the next most common value to be even a tiny bit more popular than this threshold, we would not take the A-sample to the MCV list which we clearly should.


The "take all MCVs" condition
=============================

Finally, the conditions to include all tracked duplicate samples into MCV list look like not all that easy to hit:

- there must be no other non-duplicate values (track_cnt == ndistinct)
- AND there must be no too-wide values, not even a single byte too wide (toowide_cnt == 0)
- AND the estimate of total number of distinct values must not exceed 10% of the total rows in table (stats->stadistinct > 0)

The last condition (track_cnt <= num_mcv) is duplicated from compute_distinct_stats() (former compute_minimal_stats()), but the condition always holds in compute_scalar_stats(), since we never increment track_cnt past num_mcv in this variant of the function.

Each of the above conditions introduces a bifurcation point where one of two very different code paths could be taken.  Even though the conditions are strict, with the proposed patch there is no need to relax them if we want to achieve better sample value distribution, because the complex code path has more predictable behavior now.


In conclusion: this code has not been touched for almost 15 years[2] and it might be scary to change anything, but I believe the evidence presented above makes a pretty good argument to attempt improving it.

Thanks for reading, your comments are welcome!

--
Alex

[1] https://tech.zalando.com/blog/analyzing-extreme-distributions-in-postgresql/


[2] http://git.postgresql.org/gitweb/?p=postgresql.git;a=commitdiff;h=b67fc0079cf1f8db03aaa6d16f0ab8bd5d1a240d

b67fc0079cf1f8db03aaa6d16f0ab8bd5d1a240d
Author: Tom Lane <tgl@sss.pgh.pa.us>
Date:   Wed Jun 6 21:29:17 2001 +0000

    Be a little smarter about deciding how many most-common values to save.


[3] To include per-attribute stattarget, replace the reference to pg_stats view with the following CTE:

WITH stats0 AS (
    SELECT s.*,
           (CASE a.attstattarget
            WHEN -1 THEN current_setting('default_statistics_target')::int
            ELSE a.attstattarget END) AS stats_target,

-- from pg_stats view
    n.nspname AS schemaname,
    c.relname AS tablename,
    a.attname,
    s.stainherit AS inherited,
    s.stanullfrac AS null_frac,
    s.stadistinct AS n_distinct,
        CASE
            WHEN s.stakind1 = 1 THEN s.stavalues1
            WHEN s.stakind2 = 1 THEN s.stavalues2
            WHEN s.stakind3 = 1 THEN s.stavalues3
            WHEN s.stakind4 = 1 THEN s.stavalues4
            WHEN s.stakind5 = 1 THEN s.stavalues5
            ELSE NULL::anyarray
        END AS most_common_vals,
        CASE
            WHEN s.stakind1 = 1 THEN s.stanumbers1
            WHEN s.stakind2 = 1 THEN s.stanumbers2
            WHEN s.stakind3 = 1 THEN s.stanumbers3
            WHEN s.stakind4 = 1 THEN s.stanumbers4
            WHEN s.stakind5 = 1 THEN s.stanumbers5
            ELSE NULL::real[]
        END AS most_common_freqs,
        CASE
            WHEN s.stakind1 = 2 THEN s.stavalues1
            WHEN s.stakind2 = 2 THEN s.stavalues2
            WHEN s.stakind3 = 2 THEN s.stavalues3
            WHEN s.stakind4 = 2 THEN s.stavalues4
            WHEN s.stakind5 = 2 THEN s.stavalues5
            ELSE NULL::anyarray
        END AS histogram_bounds

      FROM stats_dump_original.pg_statistic AS s
      JOIN pg_class c ON c.oid = s.starelid
      JOIN pg_attribute a ON c.oid = a.attrelid AND a.attnum = s.staattnum
      LEFT JOIN pg_namespace n ON n.oid = c.relnamespace

     WHERE NOT a.attisdropped
),
